Single Component Flame Retardant Thermal Conductive Silicone Sealant Guibao 4815ZL

Name: Single Component Flame Retardant Thermal Conductive Silicone Sealant Guibao 4815ZL
Brand: Shanxi Zorui Biotechnology Co., Ltd.
SKU: 4815ZL
Availability: InStock

Brand Name:	Zorui
Model Number:	4815ZL
MOQ:	10 cartridge
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

ProName:

Guibao 4815ZL

Appearance:

White Semi-fluid

Delivery Time:

Within 3 Working Days

Package:

300ml / Cartridge And 2600ml / Plastic Cartridge

Port:

Tianjin, Shanghai, Qingdao, Ningbo

Purity:

>99%

Storage:

Cool Dry Place

Transportation:

By Sea Or By Air

Shelf Life:

1 Years

Packaging Details:

300ml / cartridge and 2600ml / plastic cartridge

Highlight:

Vulcanized Silicone Rubber Sealant

Single Component Thermal Conductive Silicone Sealant

Flame Retardant Thermal Conductive Silicone Sealant

Product Description

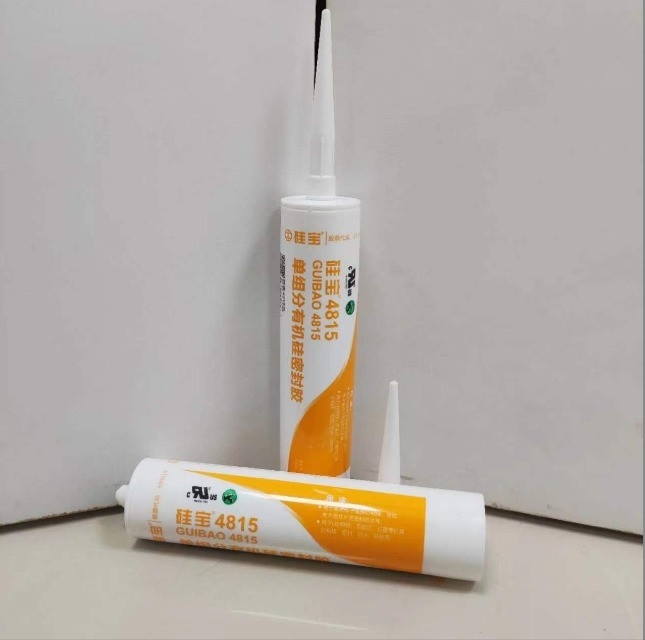

Guibao 4815ZL Single-Component Flame Retardant & Thermal Conductive Silicone Sealant

Product Feature

GUIBAO 4815ZL is a condensed single-component room temperature vulcanized silicone rubber composed of silicone polymer, reinforcing filler, addition agent, cross-linking agent, etc. Its characteristics are as follows:

Single-component packaging, easy to operate when used;

Room temperature curing, non-poisonous, non-corrosive;

After fully curing, it maintains its elasticity for a long time in the range of -50 ° C to 200 ° C;

Excellent electrical insulation performance, arc-resistant corona and impact resistance, long-term effective protection of electronic components;

Good water resistance, excellent aging resistance;

Excellent adhesion, maintain long-term sealing performance;

Excellent flame retardant performance, up to V-0 level.

Widely used for bonding and positioning of various electronic appliances, and functions as dampproof, shake proof, insulation, weather-resistant;

Used for bonding and sealing of high voltage components such as various power supplies, inverters, etc;

Used for seal protection of electric vehicle BMS controllers.

Technical data before /after curing(These values are not intended for use in preparing specifications)

NO.	Item	Technical Index	Test Method
1	Appearance	White semi-fluid	/
2	Density(g/cm³)	1.50±0.05	GB/T 13477.2
3	Viscosity(mPa.s)	35000~50000	GB/T 2794
4	Tack free time(min)	≤40	GB/T 13477
5	Hardness(Shore A)	50~60	GB/T 531.1
6	Tensile strength(MPa)	≥1.5	GB/T 528
7	Breakdown strength(kV/mm)	≥18	GB/T 1695
8	Volume Resistance(Ω.cm)	≥1×1014	GB/T 1692
9	Dielectric constant /1MHz	≤3.5	GB/T 1693
10	Flammability class	V-0	GB/T 2408
11	Thermal conductivity(W/(m·K))	0.7	ISO22007-2

These data are measured under standard conditions.

Application Method and Notes

Clean and dry the surface to be adhered, extrude the product from the packaging tube, apply it evenly on the part, and trim it before the sealant has been vulcanized to remove excess sealant.

Note that the thickness of applied sealant should not exceed 6mm. Avoid contact with the eyes during application. It should not be sealed during application and curing. Maintain a good ventilation environment.

After each use, it should be quickly sealed to prevent the remaining sealant in the tube from contacting with moisture in the air to solidify.

Color, Packaging, Storage and Transportation

GUIBAO 4815ZL is available in white semi-fluid before curing, and available in white elastomer after curing

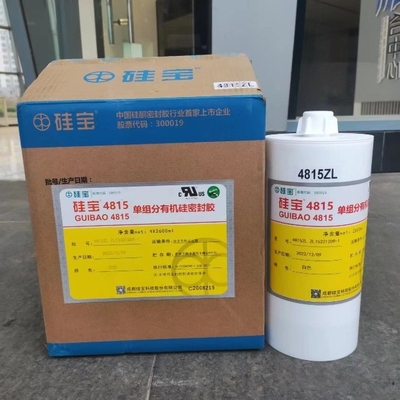

This product is packed in 300ml / cartridge and 2600ml / plastic cartridge. Special requirements can be specified after consultation.

This product is stored and transported as non-dangerous goods.

Safety instructions

This product is completely non-toxic after curing, but should avoid contacting with eyes before curing. If it is in contact with eyes, please rinse with plenty of water and consult a doctor; uncured products should keep away from children.

User attention

This document contains information that we believe to be reliable. Due to the wide variety of situations, it is impossible for us to understand everything, so we cannot guarantee the correctness and applicability of our products in certain usages and uses. When using the product, the user must test the product first to confirm the product that is suitable for your purpose.

PACKING & DELIVERY

Packaging	1kg-15kg packing	2 PE bag inside + 1 foil bag outside in carton
	25kg-50kg packing	2 PE bag inside + 1 foil bag outside in drum
	Other packing	Customized packing
Drum Size	D38cm*H60cm or customized, 25 kg/ drum
Shipping	1-50kg	International Express	Fast and convenient	Door to Door
	50-500kg	Air Transportation	Fast and cheap	To Air Port
	Above 500kg	Sea Transportation	Cheap and convenient	To Port

Single Component Flame Retardant Thermal Conductive Silicone Sealant Guibao 4815ZL 0

Single Component Flame Retardant Thermal Conductive Silicone Sealant Guibao 4815ZL 1
